171512

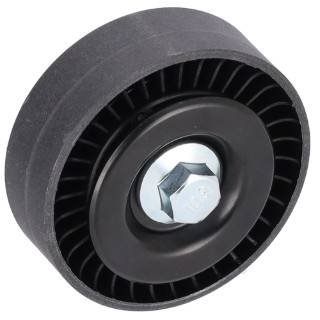

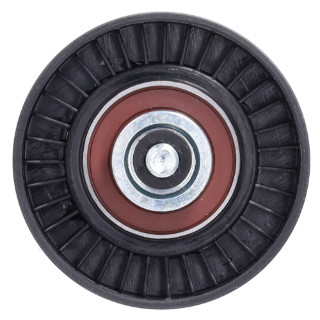

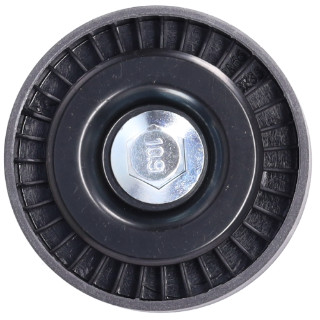

Tensioner Pulley with mounting bolt

171512

Attributes
Diameter of the Attachment Points	Diameter of the Attachment Points: 8 mm
DIN - ISO	DIN - ISO: 6912
Length	Length: 40 mm
Material	Material: Plastic
Outer Diameter	Outer Diameter: 70 mm
Outside Thread	Outside Thread: M8 x 1,25
Pulley Surface Width	Pulley Surface Width: 22 mm
Width	Width: 27 mm

Product Information

High-quality materials and ball bearings for a long service life
Optimal fitting accuracy for easier repairs
Strict quality standards
Compliance with the requirements of vehicle manufacturers

Vehicle Repairs. We've Got What It Takes.

Belt drives have the task of transmitting and driving the rotary motion of the crankshaft to the engine control system or to the auxiliary units. Belt drive components are therefore required to deliver maximum performance in every vehicle.

In order for the belt drive to run optimally, the belt tension specified by the manufacturer must be maintained. febi offers a comprehensive range of tensioner pulleys for auxiliary belts in OE matching quality.

Quality by Conviction

The tensioner pulley not only keeps the auxiliary belt tensioned, it also compensates for the elongation of the belt that occurs over time. It also absorbs vibrations so that they do not have a negative effect on the functioning of the belt drive. For these tasks, the quality of the tensioner pulley must be perfect.

Tensioner pulleys from febi are therefore intensively tested. Our quality management tests the tensioner pulleys offered for various requirements and loads, e.g. accuracy of fit, dimensional accuracy, material quality, and tensile strength.

Complete Repair Kits

When replacing the auxiliary belt, the surrounding components should also be checked for wear. For all parts to work together perfectly, it is extremely important that they are precise and made of high-quality materials.

febi offers complete auxiliary belt kits for certain vehicle types which contain all the individual parts required for professional replacement.

Comparison Number(s)

Suitable to replace	Reference(s)
Citroën	6453.SG
DS	6453.SG
FIAT	504084453 \| 500316890
IVECO (LCV)	5 0408 4453 \| 5 0031 6890
Peugeot	6453.SG

Used In Vehicles

These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
