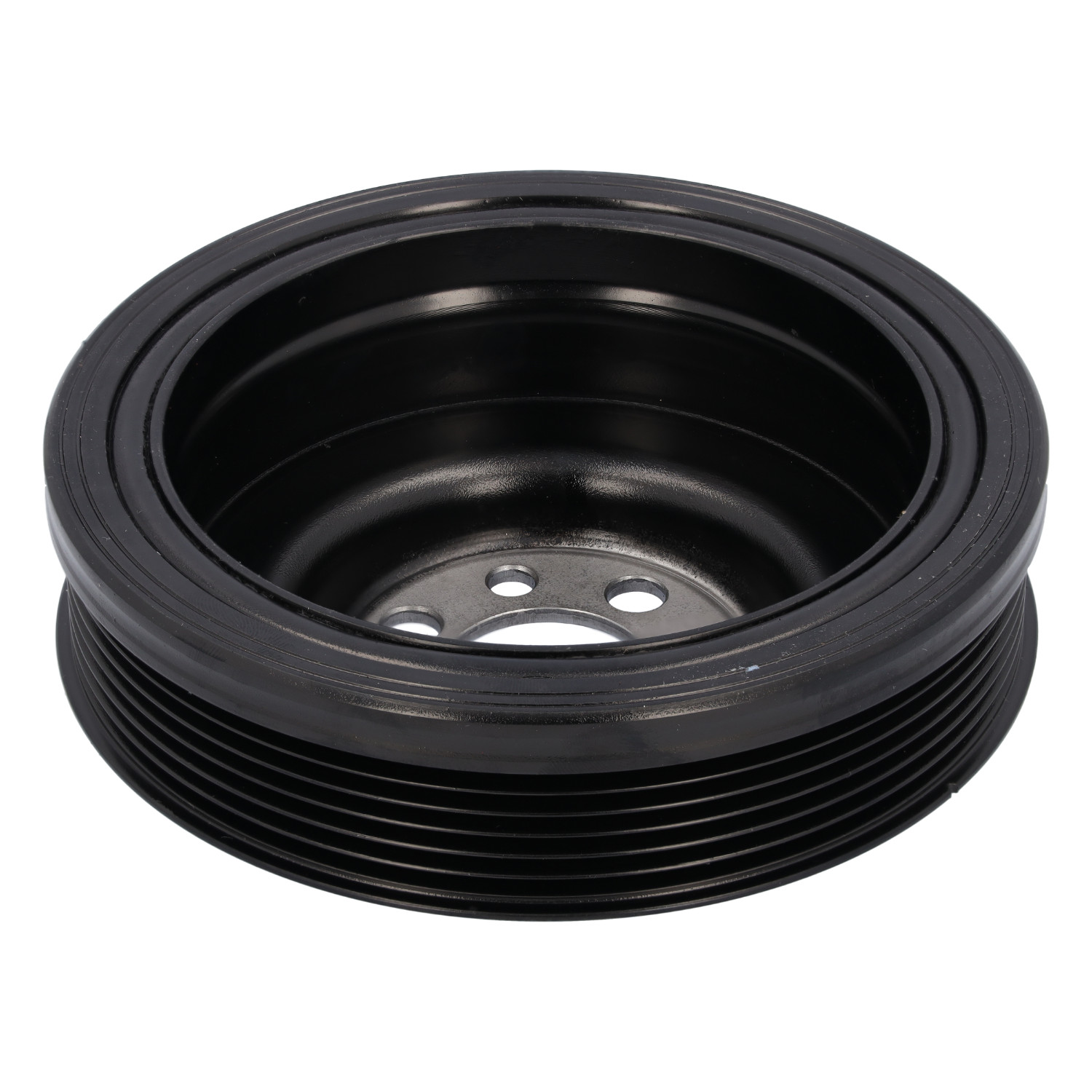

TVD Pulley for crankshaft, with bolts

3 years warranty febi
193722
1
Attributes
Inner Diameter
Inner Diameter:
30 mm
Outer Diameter
Outer Diameter:
143 mm
Parameter
Parameter:
6PK
Width
Width:
47 mm

Product Information

  • Robust construction for perfect function
  • Optimal fitting accuracy for easier repairs
  • Strict quality standards
  • Compliance with the requirements of vehicle manufacturers

Vehicle Repairs. We've Got What It Takes.

Belt drives have the task of transmitting and driving the rotary motion of the crankshaft to the engine control system or to the auxiliary units. Belt drive components are therefore required to deliver maximum performance in every vehicle.

The central component of the belt drive is the pulley. It transmits the torque generated by the engine to the belt. febi offers a comprehensive range of pulleys in OE matching quality.

Quality by Conviction

The two most common designs are vibration-damping pulleys and decoupled pulleys. It is important that the internal structure of the pulley is designed in accordance with the vibrations generated by the motor - this is the only way to compensate these and prevent the transmission of vibrations to the belt drive.

febi only supplies pulleys with the same technology of the vehicle manufacturer and the correct internal structure. Our quality management tests the pulleys offered for various requirements and loads, e.g. fitting accuracy, dimensional accuracy, material quality, and tensile strength.

Complete Repair Kits

In everyday workshop life, it is not uncommon for a worn part to have to be replaced as well as any fixings. However, these additional parts - usually bolts or nuts - are often not included with the individually available replacement part.

For certain vehicle types, febi offers pulleys with the necessary fastening material for professional replacement. This is intended for repairs at fair value without delay.

Videos
Kit or Set Content
Description Quantity Attributes
26874
 		TVD Pulley for crankshaft 1
  • Height or Thickness: 34,5 mm
  • Inner Diameter: 30 mm
  • No. of Ribs: 5
  • Outer Diameter: 143 mm
  • Parameter: 6PK
  • Width: 47 mm
188468
This article is not sold separately.
 Crankshaft Bolt 4
  • Collar Diameter: 14,75 mm
  • Fastening Type: internal multi-spline head
  • Length: 28 mm
  • Length under Head: 20 mm
  • Outside Thread: M8 x 1,25
  • Wrench Size (Metric): 10 mm
Comparison Number(s)
Suitable to replace Reference(s)
Audi 038 105 243 M S1 | 038 105 243 L S1
Seat 038 105 243 M S1 | 038 105 243 L S1
Škoda 038 105 243 M S1 | 038 105 243 L S1
Volkswagen (VW) 038 105 243 M S1 | 038 105 243 L S1
Used In Vehicles
