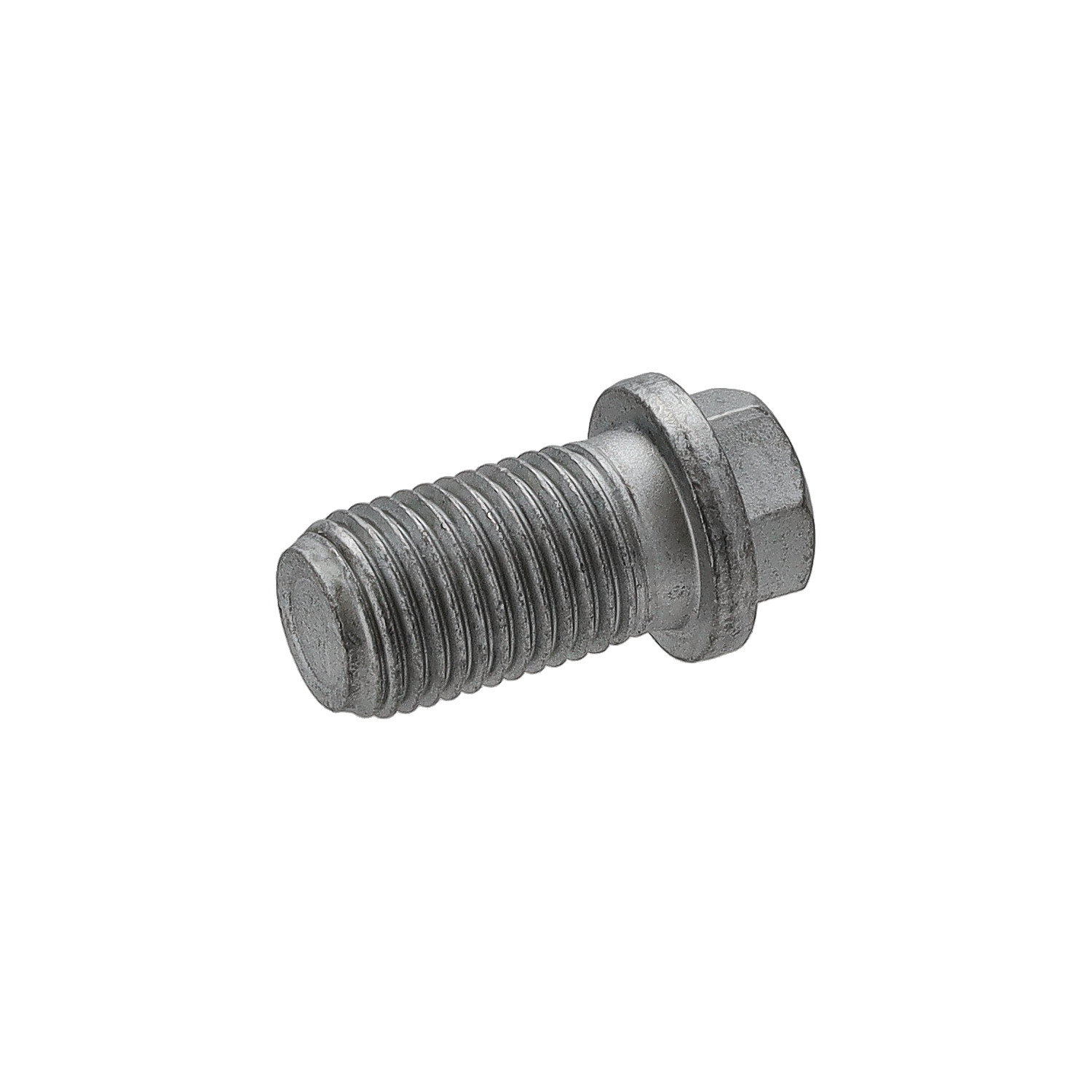

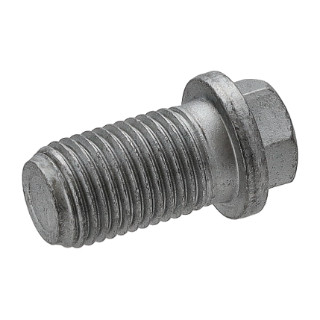

08277

Characteristics
Fastening Type	Fastening Type: Hexagonal
Length	Length: 33 mm
Length under Head	Length under Head: 24 mm
Material	Material: steel
Outer Diameter	Outer Diameter: 19 mm
Outside Thread	Outside Thread: M14 x 1,5
Surface	Surface: Delta Protect
Tensile Strength Grade	Tensile Strength Grade: 8.8
Thread Length	Thread Length: 20 mm
Wrench Size (metric)	Wrench Size (metric): 13 mm

Product Information

High-quality materials for absolute tightness
Optimal fitting accuracy for easier repairs
Strict quality standards
Compliance with the requirements of vehicle manufacturers

Vehicle Repairs. We've Got What It Takes.

Small part with a big effect: the oil drain plug is located at the lowest point of the oil pan and closes the drain opening through which the used oil completely drains off during regular oil changes. To ensure tightness after the oil change, the sealing ring should be replaced each time the oil is changed. If the sealing ring is firmly connected to the drain plug, the complete drain plug must be replaced.

febi offers a wide range of oil drain plugs with and without the matching sealing ring in OE matching quality. Selected sealing rings are also available individually.

Quality by Conviction

All oil drain plugs supplied by febi are intensively tested by our quality management. The offered oil drain plugs are tested for various requirements and loads, e.g. fitting accuracy, dimensional accuracy, material quality, and tensile strength.

Precisely Fitting Production

Anyone who repairs their own car knows the problem: inexpensive replacement parts from the independent parts trade can deviate from the mould and can be difficult to install at the intended location.

febi makes all the difference: all replacement parts are manufactured precisely and it goes without saying that production tolerances are adhered to. This is the only way to guarantee an optimal fit.

Available in Kit or Set

36109

38716

38730

38775

39608

39613

Customers also bought

07215

Sealing Ring

for oil drain plug

Comparison Number(s)

Suitable to replace	Reference(s)
Chrysler	05073945AA \| K05073945AA
Dodge	05073945AA
Infiniti	11128-HG00H \| 11128-HG00C
Jeep	05073945AA \| K05073945AA
Mercedes-Benz	111 997 03 30 \| 111 997 03 30/65 \| 001 990 18 17 \| 601 997 02 30

Used In Vehicles

These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
