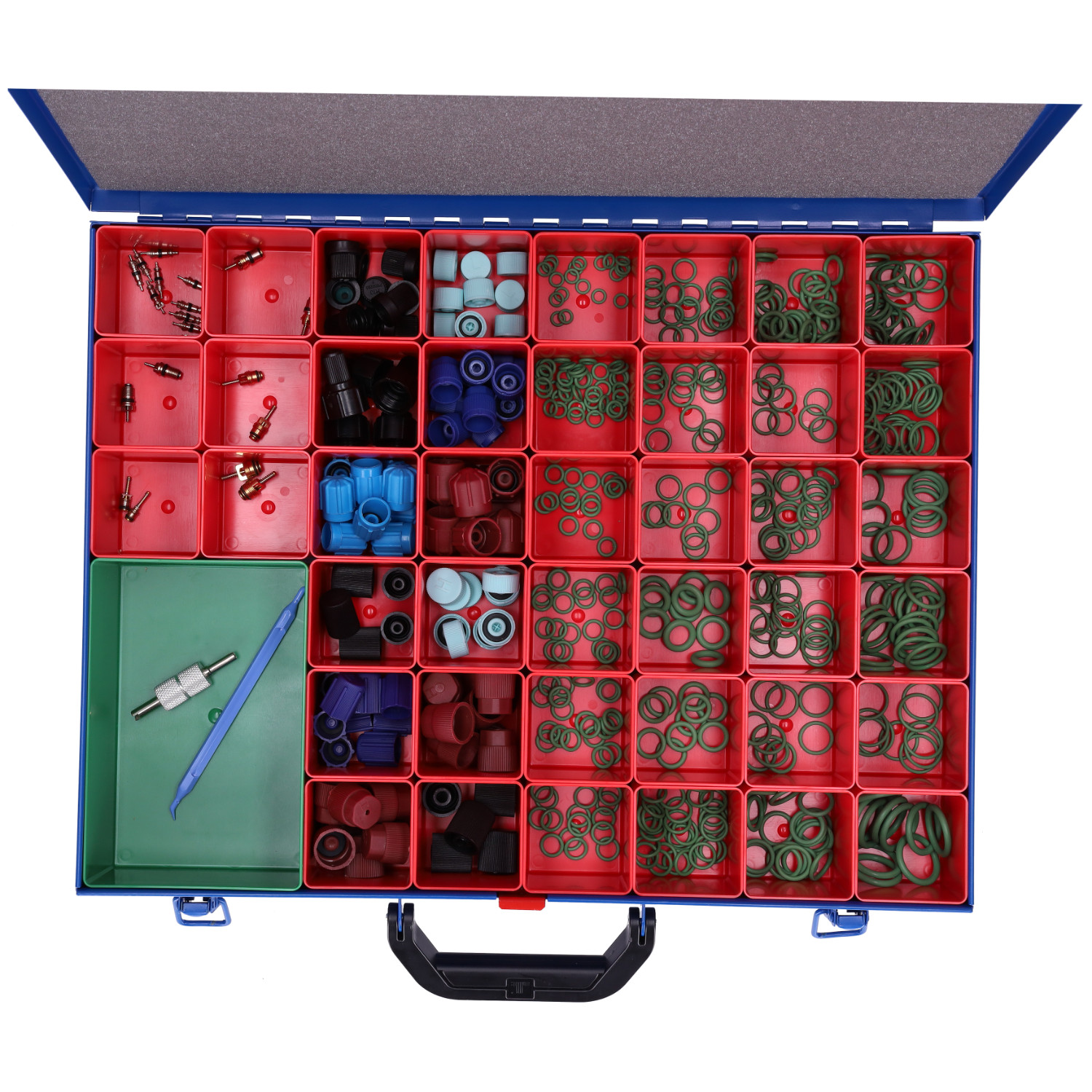

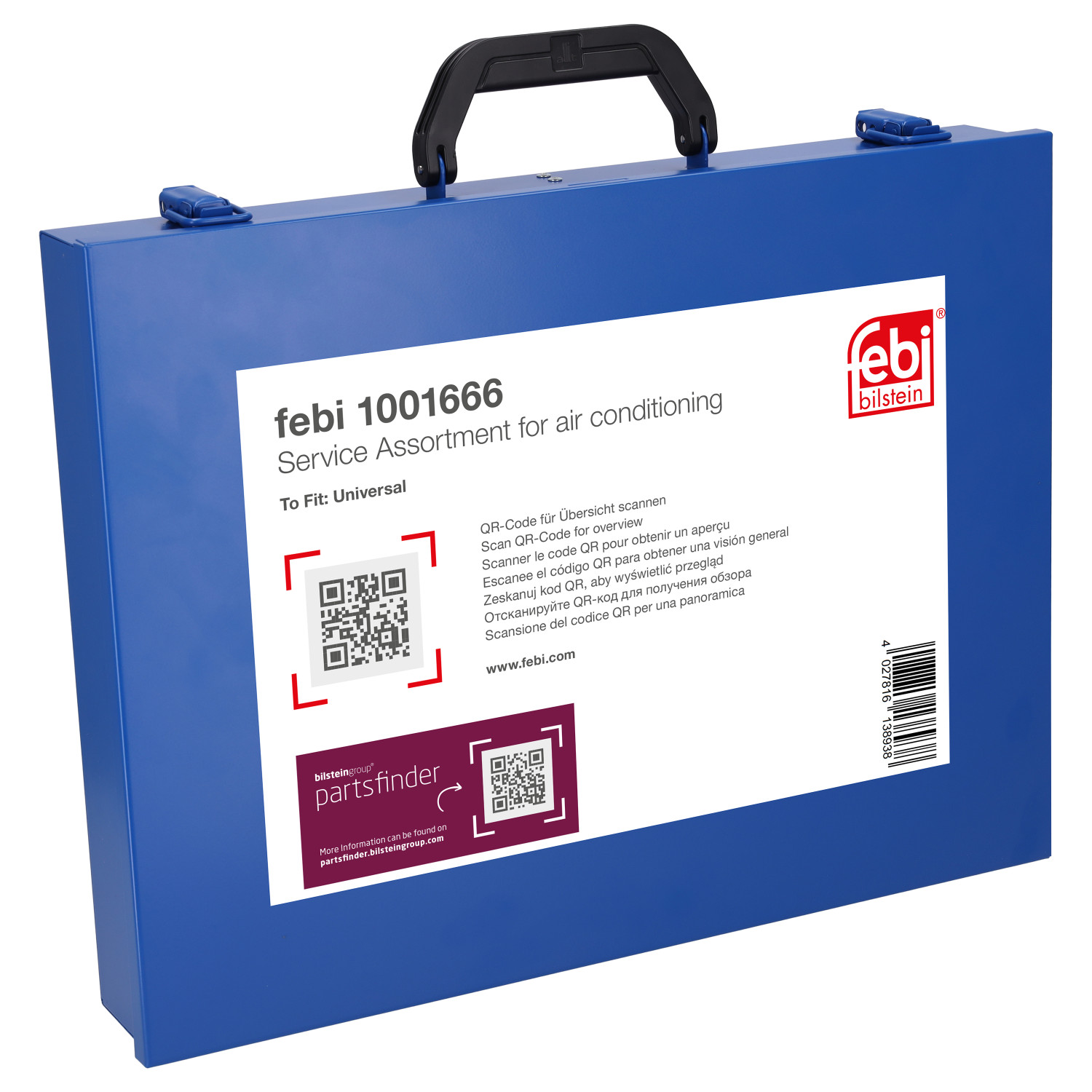

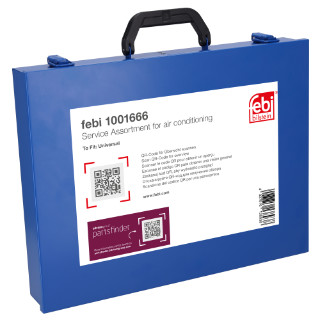

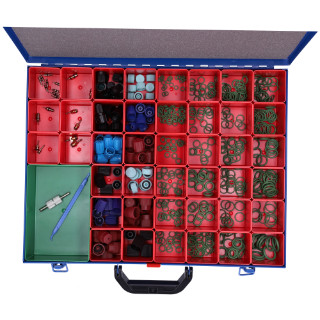

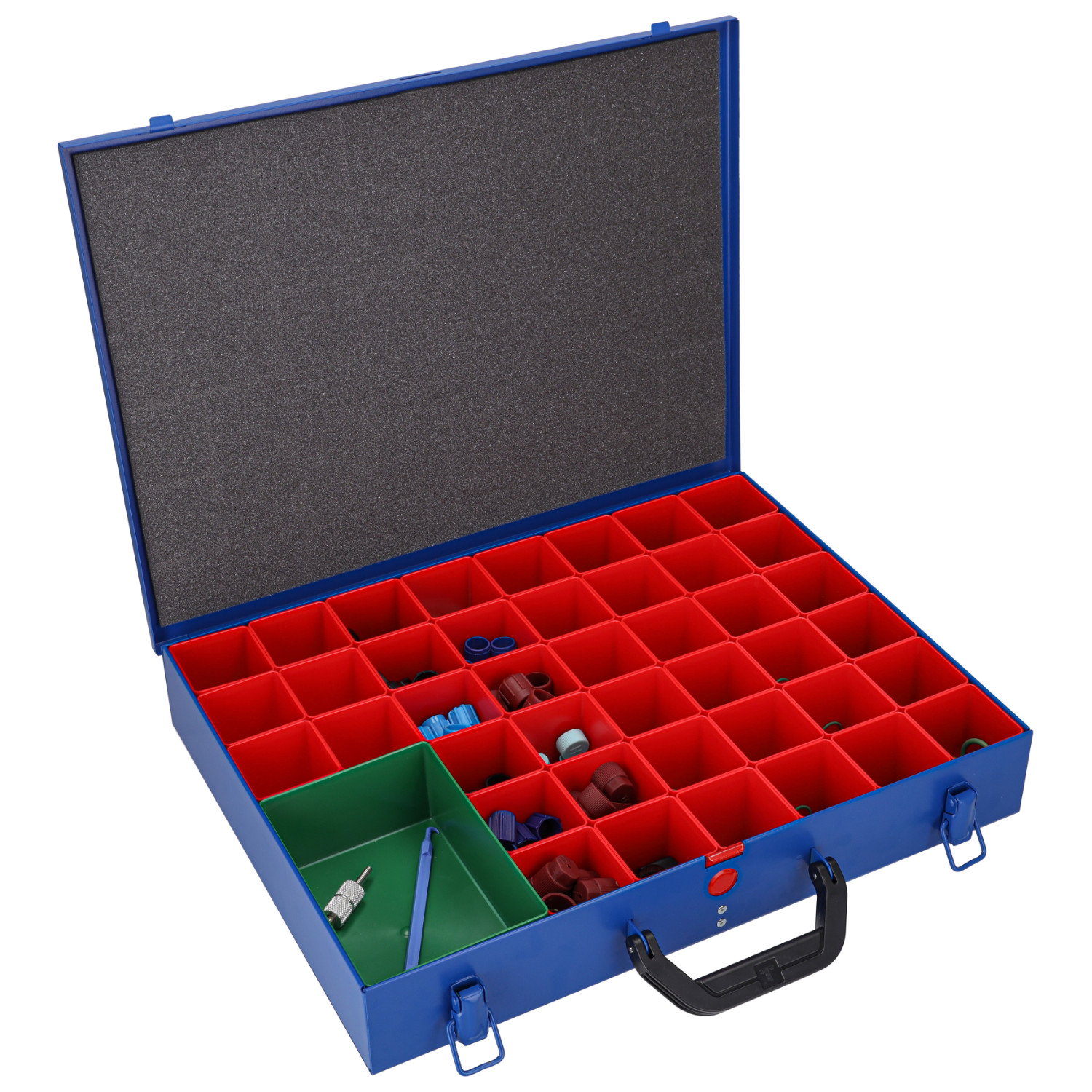

febi | 1001666 | Service Assortment for air conditioning | bilstein group partsfinder | Official Catalog for febi, SWAG & Blue Print Spare Parts

	description	Number	Characteristics
1001667	Sealing Ring for air conditioning	15	height: 1,5 mm Inner Diameter: 4,8 mm Material: HNBR (Therban) Outer Diameter: 7,8 mm
1001668	Sealing Ring for air conditioning	15	height: 1,78 mm Inner Diameter: 6,07 mm Material: HNBR (Therban) Outer Diameter: 9,63 mm
1001669	Sealing Ring for air conditioning	15	height: 1,9 mm Inner Diameter: 6,8 mm Material: HNBR (Therban) Outer Diameter: 10,6 mm
1001670	Sealing Ring for air conditioning	15	height: 1,9 mm Inner Diameter: 7,8 mm Material: HNBR (Therban) Outer Diameter: 11,6 mm
1001671	Sealing Ring for air conditioning	15	height: 2 mm Inner Diameter: 8 mm Material: HNBR (Therban) Outer Diameter: 12 mm
1001672	Sealing Ring for air conditioning	15	height: 1,9 mm Inner Diameter: 8,8 mm Material: HNBR (Therban) Outer Diameter: 12,6 mm
1001673	Sealing Ring for air conditioning	15	height: 1,78 mm Inner Diameter: 9,25 mm Material: HNBR (Therban) Outer Diameter: 12,81 mm
1001674	Sealing Ring for air conditioning	15	height: 1,9 mm Inner Diameter: 9,8 mm Material: HNBR (Therban) Outer Diameter: 13,6 mm
1001675	Sealing Ring for air conditioning	15	height: 2 mm Inner Diameter: 10 mm Material: HNBR (Therban) Outer Diameter: 14 mm
1001676	Sealing Ring for air conditioning	15	height: 3,53 mm Inner Diameter: 10,69 mm Material: HNBR (Therban) Outer Diameter: 17,75 mm
1001677	Sealing Ring for air conditioning	15	height: 2,62 mm Inner Diameter: 10,77 mm Material: HNBR (Therban) Outer Diameter: 16,01 mm
1001678	Sealing Ring for air conditioning	15	height: 1,9 mm Inner Diameter: 10,8 mm Material: HNBR (Therban) Outer Diameter: 14,6 mm
1001679	Sealing Ring for air conditioning	15	height: 2,4 mm Inner Diameter: 10,8 mm Material: HNBR (Therban) Outer Diameter: 15,6 mm
1001680	Sealing Ring for air conditioning	15	height: 1,78 mm Inner Diameter: 10,82 mm Material: HNBR (Therban) Outer Diameter: 14,38 mm
1001681	Sealing Ring for air conditioning	15	height: 2 mm Inner Diameter: 11 mm Material: HNBR (Therban) Outer Diameter: 15 mm
1001682	Sealing Ring for air conditioning	15	height: 1,78 mm Inner Diameter: 12,42 mm Material: HNBR (Therban) Outer Diameter: 15,98 mm
1001683	Sealing Ring for air conditioning	15	height: 1,9 mm Inner Diameter: 13,8 mm Material: HNBR (Therban) Outer Diameter: 17,6 mm
1001684	Sealing Ring for air conditioning	15	height: 2,4 mm Inner Diameter: 13,8 mm Material: HNBR (Therban) Outer Diameter: 18,6 mm
1001685	Sealing Ring for air conditioning	15	height: 2 mm Inner Diameter: 14 mm Material: HNBR (Therban) Outer Diameter: 18 mm
1001686	Sealing Ring for air conditioning	15	height: 1,8 mm Inner Diameter: 15 mm Material: HNBR (Therban) Outer Diameter: 18,6 mm
1001687	Sealing Ring for air conditioning	15	height: 2,62 mm Inner Diameter: 15,54 mm Material: HNBR (Therban) Outer Diameter: 20,78 mm
1001688	Sealing Ring for air conditioning	15	height: 2,5 mm Inner Diameter: 17 mm Material: HNBR (Therban) Outer Diameter: 22 mm
1001689	Sealing Ring for air conditioning	15	height: 1,78 mm Inner Diameter: 17,17 mm Material: HNBR (Therban) Outer Diameter: 20,73 mm
1001690	Sealing Ring for air conditioning	15	height: 3,53 mm Inner Diameter: 20,22 mm Material: HNBR (Therban) Outer Diameter: 27,28 mm
This article is not sold separately.	Removal & Replacement Tool for seal ring	1
This article is not sold separately.	Removal & Replacement Tool for seal ring	1
1001693	Screw Cap for service valve, air conditioning	10	internal thread: M10 Material: PA (Polyamide)
1001694	Screw Cap for service valve, air conditioning	10	Material: PA (Polyamide)
1001695	Screw Cap for service valve, air conditioning	10	internal thread: M8 Material: PA (Polyamide)
1001696	Screw Cap for service valve, air conditioning	10	internal thread: M8 Material: PA (Polyamide)
1001697	Screw Cap for service valve, air conditioning	10	internal thread: M8 Material: PA (Polyamide)
1001698	Screw Cap for service valve, air conditioning	10	internal thread: M8 Material: PA (Polyamide)
1001699	Screw Cap for service valve, air conditioning	10	internal thread: M9 Material: PA (Polyamide)
1001700	Screw Cap for service valve, air conditioning	10	internal thread: M9 Material: PA (Polyamide)
1001701	Screw Cap for service valve, air conditioning	10	internal thread: M10 Material: PA (Polyamide)
1001702	Screw Cap for service valve, air conditioning	10	internal thread: M10 Material: PA (Polyamide)
1001703	Screw Cap for service valve, air conditioning	10	internal thread: M10 Material: PA (Polyamide)
1001704	Screw Cap for service valve, air conditioning	10	internal thread: M10 Material: PA (Polyamide)
1001705	Valve Core Set for service valve, air conditioning	10	thread size: M6
1001706	Valve Core Set for service valve, air conditioning	10	thread size: M6
1001707	Valve Core Set for service valve, air conditioning	10	thread size: M8
1001708	Valve Core Set for service valve, air conditioning	10	thread size: M8
1001709	Valve Core Set for service valve, air conditioning	10	thread size: 0,2"
1001710	Valve Core Set for service valve, air conditioning	10	thread size: M10

Suitable to replace	Reference(s)
Universal	PKW & LCV
