24224

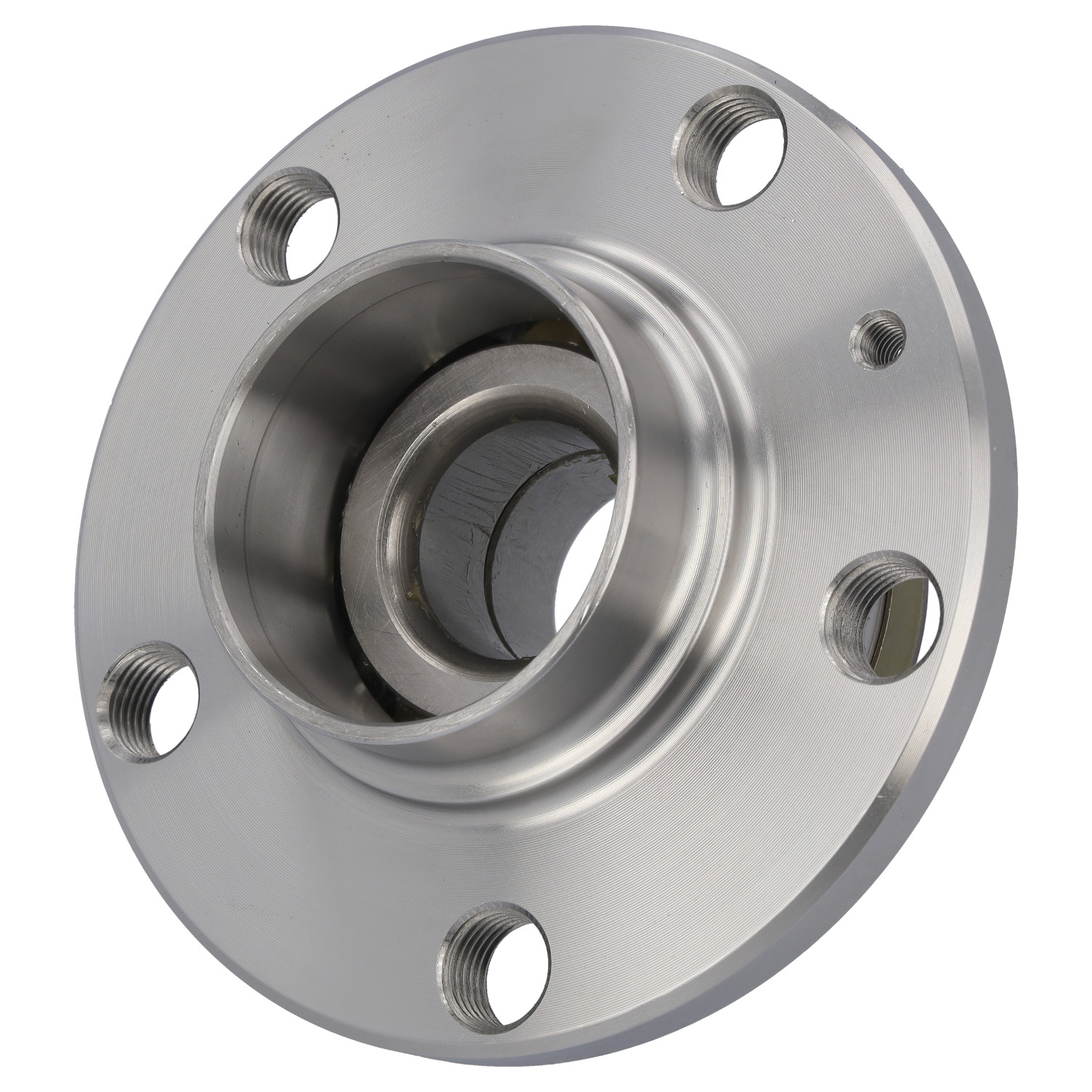

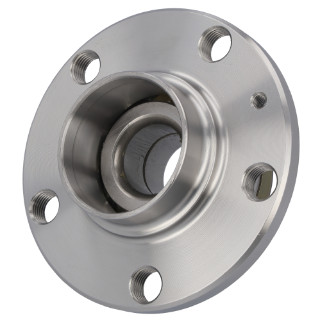

Wheel Bearing Kit with wheel hub, ABS sensor ring and additional parts

Fitting Position: rear axle left, rear axle right
3 years warranty febi
Characteristics
Additional Information / Parts
Additional Information / Parts:
wheel bearing integrated in wheel hub
Additional Information / Parts
Additional Information / Parts:
With integrated sensor ring
Bearing Type (Roller Bearing)
Bearing Type (Roller Bearing):
angular ball bearing
Inner Diameter
Inner Diameter:
28 mm
No. of Holes
No. of Holes:
5
No. of Studs
No. of Studs:
5
Outer Diameter
Outer Diameter:
66 mm
Pitch Circle Diameter
Pitch Circle Diameter:
100 mm
Width
Width:
62 mm

Product Information

  • High durability and resilience
  • Optimal fitting accuracy for easier repairs
  • Strict quality standards
  • Compliance with the requirements of vehicle manufacturers

Vehicle Repairs. We've Got What It Takes.

The drive train transmits the power of the engine to the wheels setting every vehicle in motion. Numerous components work together for this central and complex task. To ensure that they all harmonize perfectly, only high-quality parts should be used.

febi's range only includes drive articles in OE matching quality. The extensive range extends from the drive shaft and complete CV joint kits through wheel bearings and wheel hubs to flexible discs and CV boots.

Wheel bearings guide the wheels and absorb the forces generated by their rotation and, for example, when cornering. Chassis parts in particular are subject to special care in design, manufacturing, and assembly. This is why febi only offers wheel bearings in OE matching quality.

Quality by Conviction

In order to ensure absolutely reliable absorption of the radial and axial forces that occur during acceleration, braking, and cornering, wheel bearings from febi are subjected to intensive testing.

In order to ensure absolutely reliable absorption of the radial and axial forces that occur during acceleration, braking, and cornering, wheel hubs from febi are intensively tested.

Our quality management tests the wheel bearings offered for various requirements and loads. These include fitting accuracy, dimensional accuracy, material quality, tensile strength, and degree of hardness.

Our quality management tests the wheel hubs offered for various requirements and loads. These include fitting accuracy, dimensional accuracy, material quality, tensile strength, and hardness.

The optimal material composition of the wheel bearings ensures that the components, which consist of hardened steel, remain robust while still meeting the highest standards of driving safety and comfort.

The optimal material composition of the wheel hubs ensures that the hardened steel components remain robust while still meeting the highest standards of driving safety and comfort.

Comprehensive Range

In everyday workshop life, it is not uncommon for a wear part to have to be replaced as well as its attachment material. However, these additional parts - usually screws, axle nuts or locking rings - are often not included with the individually available replacement part.

febi offers complete wheel bearing kits. To ensure that the necessary repairs can be carried out without delay, the wheel bearings are usually supplied with circlips and axle nuts.

febi offers complete wheel hub repair kits. To ensure that the necessary repairs can be carried out without delay, the wheel hubs are supplied with wheel bearings and ABS sensor ring.

Kit or Set Content
description Number Characteristics
24230
This article is not sold separately.
Nut for wheel hub 1
  • Fastening Type: external - torx
  • Fitting Position: vehicle-dependent installation sides
  • Height or Thickness: 15 mm
  • Inner Diameter: 20 mm
  • internal thread: M20 x 1,5
  • Outer Diameter: 45 mm
24232
This article is not sold separately.
Dust Cap for wheel bearing 1
  • Height or Thickness: 9 mm
  • Inner Diameter: 51 mm
  • Outer Diameter: 55 mm
Comparison Number(s)
Suitable to replace Reference(s)
Audi 6Q0 598 611 | 6QD 501 611 S1 | 8X0 598 611
Seat 6Q0 598 611 | 6QD 501 611 S1 | 8X0 598 611
Škoda 6Q0 598 611 | 6QD 501 611 S1 | 8X0 598 611
Volkswagen (VW) 6Q0 598 611 | 6QD 501 611 S1 | 8X0 598 611
Used In Vehicles
